Application scenarios of photovoltaic energy storage systems
Core advantages of photovoltaic energy storage system
Product design modularization
Integration of system structure
System expansion and upgrading diversification
Storage System Solutions
Energy storage frequency modulation and peak regulation
Smart micro grid
Standby power system
Household energy storage system
Complete Project Delivery Management
Customized energy storage battery,
optimal performance / controllable cost
A team with many years of project development
and practical experience
Operation and Maintenance
Quick response
Real-time data
Remote control

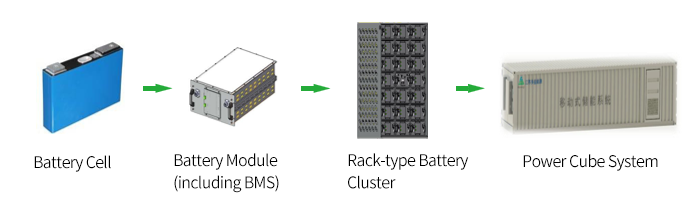

System Components

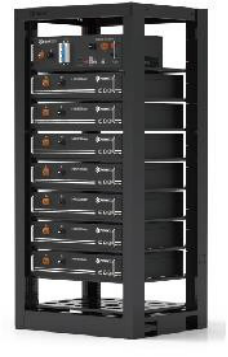

Voltage Platform of Industrial and Commercial Solar Storage System
Category | Basic Parameters | POWERCUBE-X1(336V50Ah) |
Nominal Parameters | Nominal Capacity (KWh) | 16.8 |
Nominal Voltage（V） | 336 | |
Structural Parameters | Dimension（mm） | 600*505*1300 |
Weight（kg） | 250 | |
Electric Parameters | Discharge Voltage（V） | 378 |
Min. Working Voltage（V） | 315 | |
Max. Charging Current（A） | 25 | |
Nominal Discharge Current（A） | 25 | |
Max. Discharging Current（A） | 50 | |
Charge / Discharge Efficiency（%） | 96 | |
Others | Design Life (years) | ＞10 |
Cycle Life (times) | 5000 | |
Working Temperature (℃ ) | 0～50 | |
Shelf Temperature (℃ ) | -20～60 | |
Battery Cell | H48050 | |
Battery Module Qty (Optional) | 3～7 |
Features of photovoltaic energy storage battery
Modular structure, flexible to form various voltage platform / capacity level system within 1000V, and easy to maintain; Three-level battery management system design provides the highest reliability; Customized lithium iron phosphate battery, high safety performance, long cycle life, service life of more than 10 years; Small size, light weight, easy to carry, rack and container deployment flexible, can be quickly used in various scenarios; Through TUV, CE, UN38.3, GB/T 36276-2018 and other product certification.
Container energy storage
The container energy storage system includes lighting, fire protection, environmental control, power distribution, security, monitoring, etc. The internal arrangement of the cabinet can be customized according to customer‘s requirements of different specifications of container energy storage system.
